LAN , WAN and MAN

1. Local Area Network (LAN)

Overview: A LAN connects devices within a limited area, like an office building, school, or campus. The goal of a LAN is to share resources (e.g., files, printers, software) among devices in close proximity.

Technical Details:

• Hardware: LANs commonly use Ethernet cables, switches, and routers. Wireless LANs (Wi-Fi) use access points (APs).
• Topology: Common topologies (arrangements of devices) in LANs include star, bus, and ring.
• Protocols: LANs use standard protocols such as Ethernet (IEEE 802.3) or Wi-Fi (IEEE 802.11).

Example: Imagine an office building where all employees' computers are connected to a central server. They can share files, access applications, and use a common printer. This setup is efficient because it limits data flow to a small area, optimizing speed and reducing data transfer costs.

Advantages:

• High Data Transfer Speeds: Up to 10 Gbps or more in some cases.
• Low Cost: Less costly to set up and maintain compared to MANs and WANs.
• Security: Easier to control access and secure devices within a small area.

Limitations:

• Limited Range: Only suitable for small geographic areas.
• Scaling: Expanding a LAN to cover larger areas can be challenging and requires careful design.

2. Metropolitan Area Network (MAN)

Overview: A MAN connects multiple LANs within a specific geographic area, like a city or large campus. MANs are typically used by organizations that need to share resources across multiple buildings or locations within a city.

Technical Details:

• Hardware: MANs often use fiber-optic cables or microwave links to maintain higher speeds across distances.
• Protocols: MANs may use protocols like Fiber Distributed Data Interface (FDDI) and Synchronous Optical Network (SONET).
• Transmission Media: Fiber optics and microwave systems are popular due to their efficiency in medium-range distances.

Example: Consider a university with multiple campuses across a city. A MAN can connect each campus’s LAN to enable seamless data exchange, centralized resource access, and secure communications between campuses.

Advantages:

• Extended Range: Covers a large area (up to a city or town) while still maintaining moderate speeds.
• Efficient Resource Sharing: Allows organizations to share data and applications efficiently across multiple sites.
• Cost-Effective for City Networks: MANs are more affordable than WANs for city-level networking.

Limitations:

• Moderate Cost: More expensive than LANs because of the larger geographic area and the need for specialized hardware.
• Complex Management: Requires advanced network management due to multiple locations and devices.

3. Wide Area Network (WAN)

Overview: A WAN spans large distances, connecting LANs and MANs across countries or continents. WANs allow organizations to operate globally, providing a way to communicate and share data over long distances.

Technical Details:

• Hardware: WANs utilize a combination of leased lines, satellites, fiber optics, and cellular networks.
• Protocols: WANs rely on protocols such as MPLS (Multiprotocol Label Switching), Frame Relay, and ATM (Asynchronous Transfer Mode).
• Internet Integration: The internet itself is a vast WAN, relying on various technologies to interconnect LANs and MANs worldwide.

Example: Large corporations like Amazon or Google have offices worldwide that need to communicate and share data constantly. A WAN allows these offices to operate as part of the same network, despite being in different countries.

Advantages:

• Global Reach: Enables global operations and remote work by connecting locations across vast distances.
• Redundancy: WANs often include redundant paths to ensure reliability.
• Flexibility: Supports various types of data, including voice, video, and text.

Limitations:

• High Cost: Setting up and maintaining a WAN is expensive due to the infrastructure required.
• Lower Speed: Data speeds are generally lower than LANs and MANs because of the extensive distances and multiple network hops involved.
• Security Concerns: Managing security across such a large network is complex, with more exposure to potential threats.

Each network type serves a unique purpose, fitting different needs based on the range, speed, and resources required.

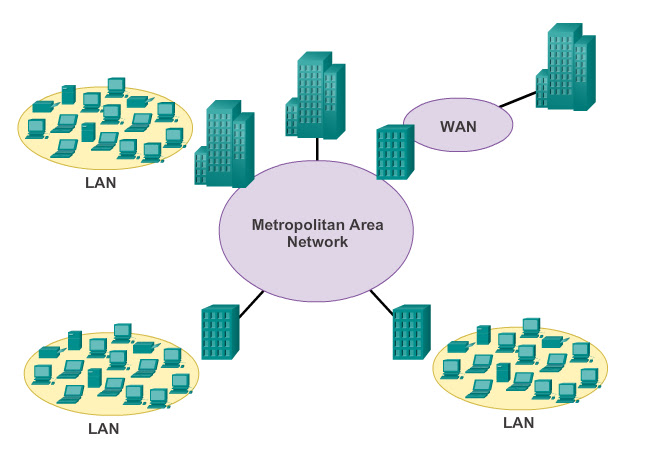

Picture courtesy: hasonss.com
